View productHome / Fixed Outdoor / PRIME MESH
71% transparency · IP68
PRIME MESH
See straight through – and still shine at 10,000 nits.
Outdoor transparency LED for glass facades, shop windows and advertising areas – with 71% see-through, IP68 protection and just 10 kg per square metre.
Pixel Pitch 15.6 mmPixel Pitch 20.8 mmPixel Pitch 31.2 mmPixel Pitch 31.2/15.6 mm
In brief
The PRIME MESH is a WALED LED video wall for outdoor fixed installation. Outdoor transparency LED for glass facades, shop windows and advertising areas – with 71% see-through, IP68 protection and just 10 kg per square metre. Available pixel pitches: P15.6 bis P31.2. Ingress protection: IP68. Brightness: bis 10.000 nits.
See straight through – and still shine at 10,000 nits.
PRIME MESH is WALED's transparent outdoor LED solution: ultra-thin light bars, a mini power-box design and just 10 kg per square metre allow 71% see-through – you keep looking out through the facade while the display radiates outward at full power. The diamond texture delivers deep black and rich colour even in backlight; IP68 reliably protects against wind, rain and dust. New in the series: the P31.25-15.625 variant in a 1,000 × 1,000 mm aluminium cabinet – 8,000 nits black LED, IP68 front, only 10.8 kg/m², with front and rear service.
Highlights
What sets the PRIME MESH apart
71% see-through – facade stays facade
With ultra-narrow LED strips and a mini power box, PRIME MESH reaches up to 71% transparency (at P31.25×15.625) – ideal for glass facades, shop windows and dual-use sightlines.
IP68 – wind, rain, dust: no problem
Full IP68 rating with triple-sealed light bars, dual-layer protected power box and a smooth structural back design – built for permanent outdoor operation.
Diamond texture for deep black
The diamond-etched mask surface scatters direct light into soft diffuse reflection – the result: deeper blacks, more image depth and high-contrast visuals even in bright sunlight.
Shape follows idea – flat, curved, cube
Convex 0–14°, concave 90°, full cube installation: PRIME MESH enables creative installations that classic cabinets cannot match.
Featherweight – 10 kg/m²
At just around 10 kg per square metre, PRIME MESH is light enough for retrofit installation on existing facades – without elaborate static reinforcement.
30% less power
Efficient heat dissipation and optimised drivers save around 30% energy – cutting running costs and protecting the LEDs over the long term.
bis 10.000 nits nits
Peak brightness
7.680 Hz Hz
Refresh rate
16 bit
Greyscale
IP68
Protection

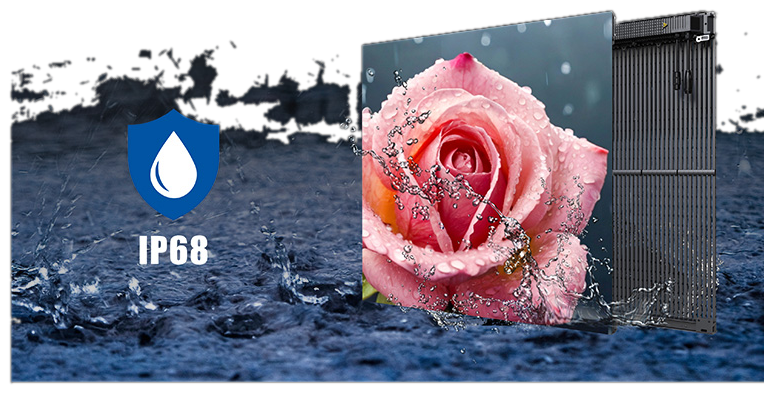

IP68 All-Weather Protection
Fearless against wind and dust, easily tackling outdoor challenges with lasting stability and continuous performance.
- Seamless light bar modules with triple waterproof protection
- Power box dual-layer protection
- Smooth back structural design

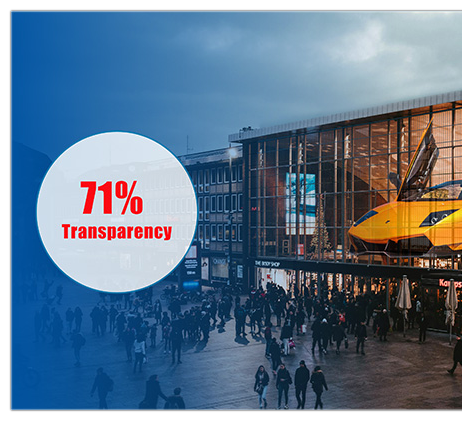

71% Ultra-High Transparency, Unobstructed Views
With ultra-narrow LED strips and a miniature power box design, this display achieves up to 71% transparency (P31.25×15.625), seamlessly blending behind glass facades while perfectly balancing indoor lighting and outdoor visual impact.

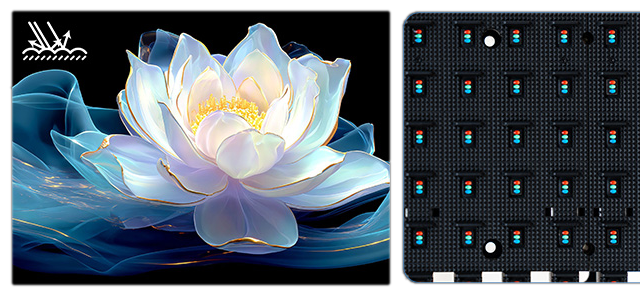

Diamond-Textured Mask for Superior Contrast
The diamond-textured surface disperses direct light into soft diffuse reflection, producing deeper blacks and richer image depth. Even under bright sunlight, visuals remain crisp, detailed, and strikingly vibrant.
Ultimate Visuals, Truly Stunning
10,000 nits brightness for clear visibility under the sun, 7680 Hz refresh rate for flicker-free capture, and 16-bit grayscale for exquisitely smooth, lifelike imagery.

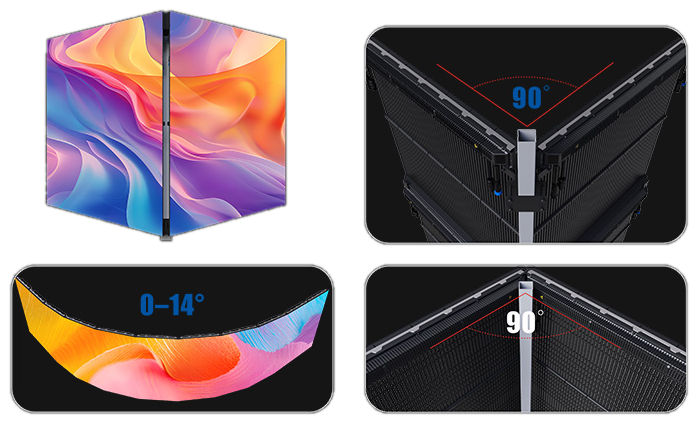

Versatile Shapes, Flexible Installation
Offers versatile shape options — from flat to adjustable convex (0–14°) and 90° concave designs, enabling creative installation possibilities for different spaces and visual concepts.
Technical specifications
PRIME MESH – Technical specifications
| Parameter | PRIME MESH P15.6 | PRIME MESH P20.8 | PRIME MESH P31.2 | PRIME MESH P31.25-15.625 |
|---|---|---|---|---|
| Pixel pitch | 15,625 mm | 20,833 mm | 31,25 mm | 31,25 mm (H) × 15,625 mm (V) |
| Module size | 500 × 1000 mm | 500 × 1000 mm | 1000 × 1000 mm | 125 × 1000 mm (Kabinett 1.000 × 1.000 mm) |
| Transparency | ~50 % | ~60 % | bis 71 % | – |
| Brightness | bis 10.000 nits | bis 10.000 nits | bis 10.000 nits | 8.000 nits (Black-LED) |
| Refresh rate | 7.680 Hz | 7.680 Hz | 7.680 Hz | 7.680 Hz |
| Greyscale (bit) | 16 | 16 | 16 | 14 |
| Weight | ~10 kg/m² | ~10 kg/m² | ~10 kg/m² | 10,8 kg/m² |
| IP rating | IP68 | IP68 | IP68 | IP68 Front / IP65 Rück |
| Energy efficiency | bis 30 % Einsparung | bis 30 % Einsparung | bis 30 % Einsparung | – |
| Arc adjustment | konvex 0–14° / konkav 90° | konvex 0–14° / konkav 90° | konvex 0–14° / konkav 90° | – |
| Applications | Glasfassaden, Schaufenster, Werbung, Messen | Glasfassaden, Schaufenster, Werbung, Messen | Großfassaden, Außenwerbung, DOOH | Großfassaden, Außenwerbung, DOOH |
| Power consumption (max./avg.) | – | – | – | 372 / 112 W/m² |
| Operating temperature | – | – | – | −40 °C bis +55 °C |
| Maintenance | – | – | – | Front- und Rückwartung |
Learn more
Background & technology
Related products
More systems in the same category
SIGNATURE RATIO
Outdoor fixed LED with unique 320×320 mm module geometry – pixel-precise 16:9 formats up to 5120×2880 mm, 10,000 nits, IP66, TÜV, 5VB fire-proof.
View product
WALED PYLON
Turnkey LED advertising pylons: steel column built in NRW, foundation per statics, equipped with SIGNATURE RATIO or SIGNATURE 960 panels. End-to-end service including planning support, ABC Finance leasing, installation and 24/7 service.
View productInterested in the PRIME MESH?
Configure your project now in minutes – instant and non-binding.
Configure your LED wall
FAQ
Frequently asked questions about PRIME MESH
What is the PRIME MESH suitable for?
PRIME MESH is WALED's transparent outdoor LED solution: ultra-thin light bars, a mini power-box design and just 10 kg per square metre allow 71% see-through – you keep looking out through the facade while the display radiates outward at full power. The diamond texture delivers deep black and rich colour even in backlight; IP68 reliably protects against wind, rain and dust.
What pixel pitch does the PRIME MESH have?
The PRIME MESH is available with pixel pitches P15.6, P20.8, P31.2 plus the P31.25-15.625 variant. Which pitch suits your project depends on the viewing distance: as a rule of thumb, the pitch in millimetres roughly equals the minimum viewing distance in metres. WALED explains this in detail at www.ledwalls.de/pixel-pitch-erklaert.
What ingress protection does the PRIME MESH have?
The PRIME MESH is specified with ingress protection IP68. WALED explains what the individual IP ratings mean and which rating is required for indoor, shop window, outdoor or coastal locations at www.ledwalls.de/ip-schutzklassen-erklaert.
How bright is the PRIME MESH?
The PRIME MESH reaches bis 10.000 nits. Whether this suffices for your location depends on ambient light: 600 to 1,200 nits in a conference room, 1,500 to 2,500 nits in a lobby, 3,500 to 5,000 nits outdoors in shade and 6,000 nits or more in direct sunlight.
Is the PRIME MESH camera-ready?
The PRIME MESH operates at a refresh rate of 7.680 Hz. For context: 1,920 Hz already looks smooth to the human eye, camera productions in rental and live work typically need 3,840 Hz, and TV studio, film production and xR stages need 7,680 Hz.
Can I rent or buy the PRIME MESH?
The PRIME MESH is designed for fixed installation and is sold, planned and installed by WALED. WALED VIDEOWALLS GmbH delivers, installs and services throughout Germany from Duisburg. Request a non-binding quote via the LED wall configurator at www.ledwalls.de/konfigurator or the contact form at www.ledwalls.de/kontakt.
